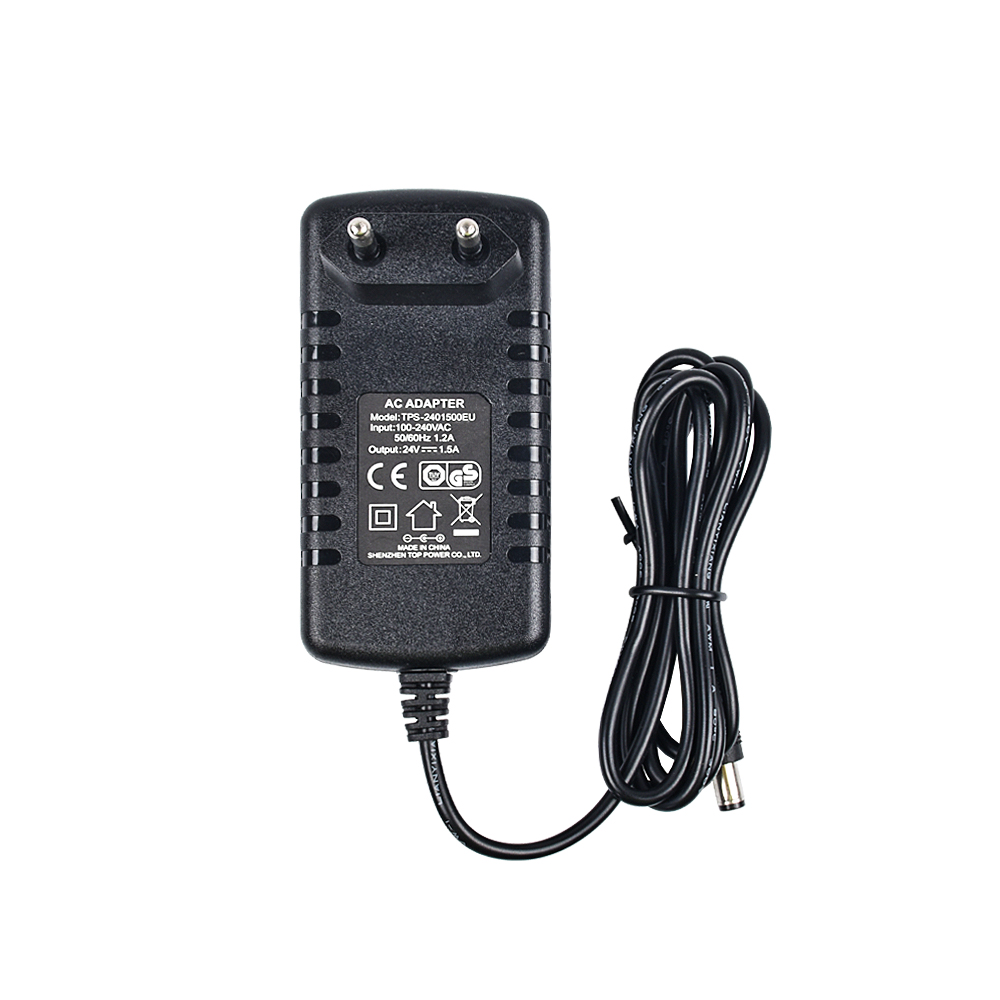

UL/GS/RCM/CE/FCC/CB/PSE/KC Listed 24V 1.5A AC Adapter
Switching Power Supply |
| Input Condition : 100 to 240VAC 50/60 Hz 1.2A Max |
| Input Rated Voltage : 100 to 240VAC |
| Input Voltage Range : 90 to 264VAC |
| Input Rated Frequency : 50/60Hz |
| Input Frequency Range : 47Hz to 63Hz |
| Input Current : 1.2A Max |
| Input Inrush Current : 60A Max |
| Input No Load Power Consumption : 0.1W Max At 115Vac/230Vac |
| Efficiency : 87.4% Min Level VI |
| Rated Output Power: 36W |
Output Voltage:24VDC
Output Current:1.5A |
| Output Load Regulation : ±5% |
| Output Over Shoot : 130% Max |
| Protection : OCP OVP SCP OPP |
| Dielectric Withstand Voltage : 3.75KV 5mA 60s |
| Leakage Current : 0.25 mA At 230Vac |
| Operating Temperature: 0 to 40℃ |
| Storage Temperature: -10 to 85℃ |
| Relative Humidity: 20 to 80% |
